Canon has announced the telephoto zoom lens 'CJ27e×7.3B IASE T' in the 'UHDxs' series, equipped with the digital drive unit 'e-Xs V', compatible with 2/3-inch sensor 4K broadcast cameras. The release date is scheduled for late August 2024.

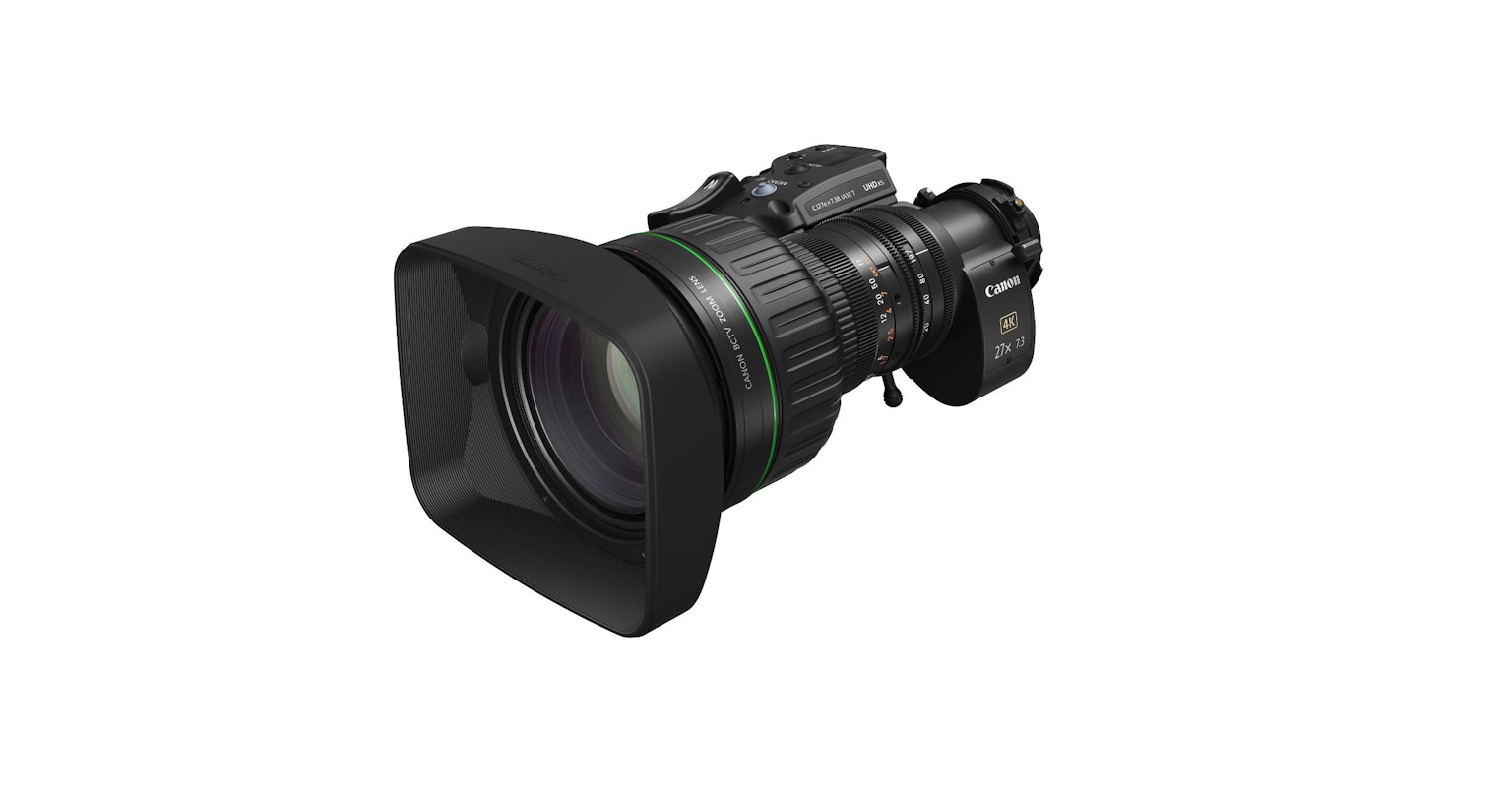

The 'CJ27e×7.3B IASE T' is a telephoto zoom lens optimized for 2/3-inch sensor 4K broadcast cameras, boasting advanced optical performance that combines wide-angle and high magnification in a compact and lightweight design. It is expected to excel in various shooting scenarios, including broadcasting, news, studio program recording, remote video production, and more.
Outstanding Wide-Angle and High Zoom Capability

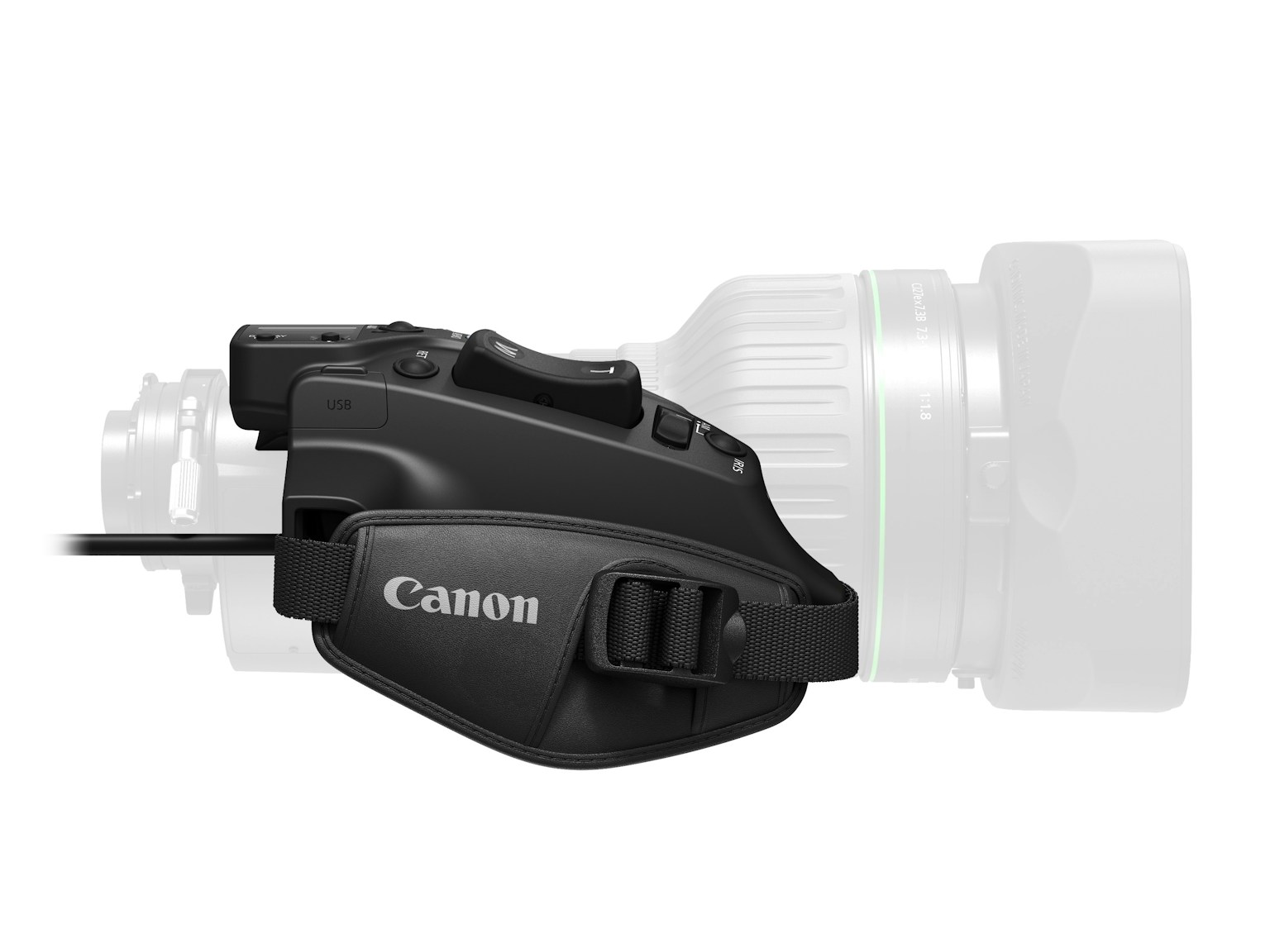

Achieving a class-leading 27x zoom from a wide-angle of 7.3mm to a telephoto end of 197mm. The built-in 2x extender allows for impressive telephoto shooting up to 394mm. Additionally, the newly developed 'e-Xs V' digital drive unit significantly improves iris operation responsiveness, ensuring you don't miss fast-moving subjects.
Equipped with a USB Type-C port, it allows for easy reading and writing of lens settings and user firmware updates. It also offers high compatibility with remote shooting and virtual production.
Main Specifications of the New Product
- Model: CJ27e×7.3B
- Lens Type: IASE T
- Application: 2/3-inch 4K Camera / 2/3-inch HD Camera
- Zoom Ratio: 27×
- Extender: 1.0×: 7.3–197mm, 2.0×: 14.6–394mm
- Maximum Aperture Ratio:
- 1:1.8 at 7.3–120mm, 1:2.95 at 197mm
- 1:3.6 at 14.6–240mm
- 1:5.9 at 397mm
- Angle of View:
- 66.7°×40.6° at 7.3mm
- 2.79°×1.57° at 197mm
- 36.4°×21.0° at 14.6mm
- 1.40°×0.79° at 394mm
- Minimum Object Distance: 0.8m (10mm with macro)
- Image Size at Minimum Object Distance:
- 98.0×55.1cm at 7.3mm
- 3.8×2.1cm at 197mm
- 49.0×27.6cm at 14.6mm
- 1.9×1.1cm at 394mm
- Filter Thread Diameter: 94mm P1.0 (Lens Barrel) or 105mm P1.0 (Hood)
- Dimensions: Approx. 169.9×117.2×229.0mm
- Weight: Approx. 2.10kg
